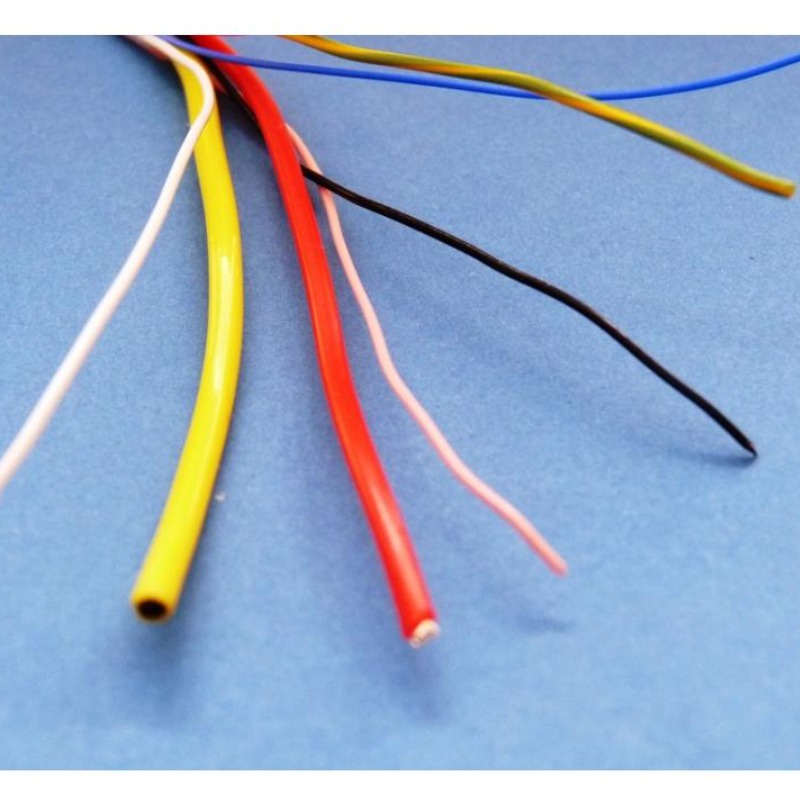

We are manufacturing PTFE (Poly Tetra Fluoro Ethylene) insulated wire or Teflon wires as per JSS 51034 & MIL 16878 – D. These wires are specially designed for the internal wiring of high reliability electrical & electronic equipment.
These wires have following properties:-
Hook up wire type:-
Type ET: -Type ET wire is intended for use in low voltage, high temperature applications. It is considered suitable for use up to a maximum of 250 volts RMS.
Type E: - Type E wire is intended for high temperature applications and is considered suitable for use up to a maximum of 600 volts RMS.
Type EE: - Type EE wire is intended for high temperature applications and is considered suitable for use up to a maximum of 1000 volts RMS.
Electrical specifications of Type ET, E & EE wire:-
| Â | ET | E | EE |
|---|---|---|---|
| High frequency spark test | 2.9 KV | 4.6 KV | 5.7 KV |
| Impulse Spark Test | 4.0 KV | 6.5 KV | 8.0 KV |
| Dielectric Strength peak voltage Test | 1.5 KV | 2.0 KV | 3.0 KV |
We are manufacturing Hook up wire with Silver coated copper (SCC) conductor as well as Nickel coated copper (NCC) conductor.
Hook up wire with SCC can be used from -65°C to +260°C degree where as with NCC it can be used from -65°C to +200°C.
Colors: - Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White & Transparent.
