Bearing RTD
These types of RTDs are also known as BTD (Bearing Temperature Detector) as they are generally used in measuring the temperature of bearing of Motor, Generator or turbine.
We are manufacturing wide range of BTDs as per costumers requirement. From Miniature RTD with dia of 2MM & Length of 20MM upto RTD with dia of 20MM & length 500MM are our routine product.
Some costumers are using RTD with insulated casings while some are using mineral insulated casings without any insulation.
RTD with Heads for turbo generators & Industrial furnaces
These types of RTDs are used in measuring the temperature of Air/ Gas/ Seal oil drain in turbo generators as well as in Industrial furnaces & oven

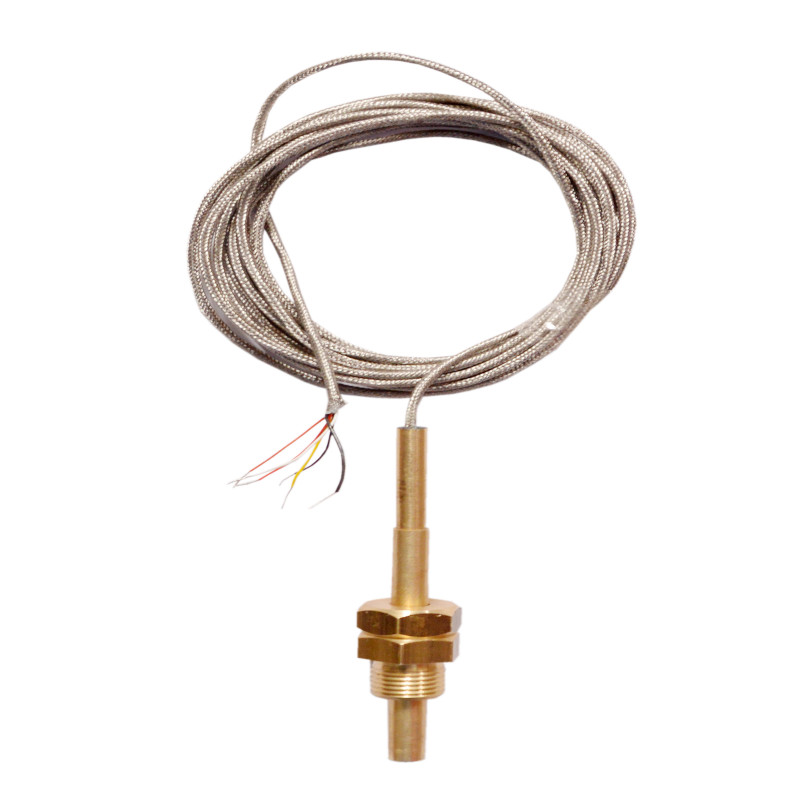

RTD with Mineral Insulated cables
These type of RTDs are used in Hydro Generators, and they are supplied with oil tight Gland Nut.
These RTD can work up to Temperature range of 200 degree C.

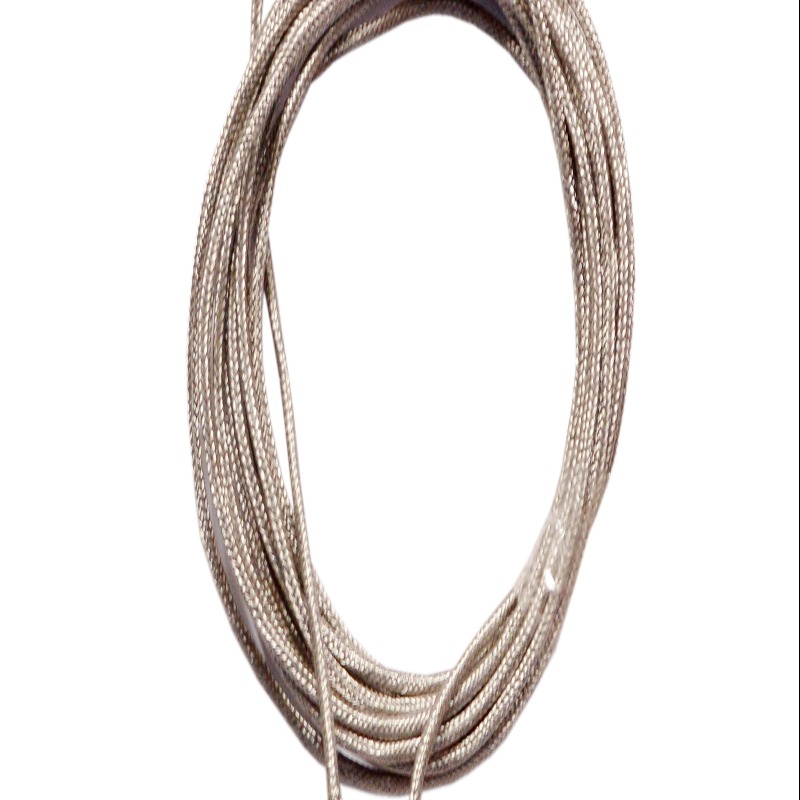

We manufacture these RTDs in simplex type (with single element) as well as duplex type (with two elements). These RTDs are supplied with mineral insulated cable. The conductor wire is insulated with MGO (Magnesium Oxide Powder) and placed inside a flexible copper sheath. Due to outer copper insulation it can be placed in an oily atmosphere. Sensor portion is placed inside SS or any other metallic casing as per costumer requirement.
Along with these above-mentioned RTDs we are also manufacturing some special type of RTDs as per costumer’s specifications.
RTD PT-100 3 WIRE Simplex, Dimensions:- length:- 0.8-2MM, width:- 6-10 MM, Length:- 45-300MM Lead Length:- 3000MM
