Product Specification
| Material | Mild Steel |
| Automation Grade | Semi-Automatic |
| Voltage | 220-240 V |
| Feed Motor | 3 HP/960 RPM |
| Coolant Motor | 5 HP/1440 RPM |
| Coolant Pump Motor | 1-10 HP |
| Weight of the Machine | 4000 Kg |

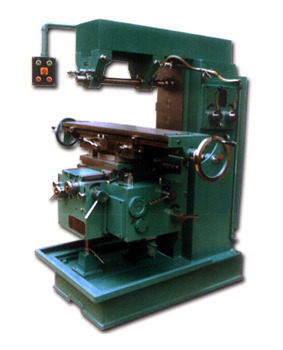

Backed by profound experience of our experts, we are an unparalleled name engaged in providing a high-quality assortment of All Geared Milling Machine.
Detail:
Our expertise lies in manufacturing a technically advanced range of All Geared Milling Machines. R-4M(AU)G that is based on latest technology. This Machine is reckoned for its sturdiness & superior performance, and is subject to customization as per the specifications laid down by our clients.
The specifications of this machine are mentioned below:
Â
| Table | Inches | MM |
| Table area | 60 x 13 | 1524 x 330 |
| No. of T slots | 3x5/8 | 3x 15 |
| Distance between T slots | 2 ¾ | 70 |
| Swivels forward & back | 45° | Â |
| Range | ||
| Longitudinal manual / automatic | 32 | 813 |
| Cross manual / automatic | 12 | 305 |
| Vertical manual / automatic | 24 | 610 |
| Head | ||
| Taper in spindle nose | ISO 40 | Â |
| Diameter of Spindle nose/at rear bearing | 4, 2 | 102, 51 |
| Size of hole through Spindle | 7/8 | 22 |
| Length of Arbor | 30 | 762 |
| Diameter of milling arbor | 1 | 25.4 |
| Range of 9 speeds | 60 – 830 RPM | Â |
| Overarm | ||
| Length of over arm | 50 | 1270 |
| Width of bearing surface of ways | 2 ½ | 63 |
| Max. Swing of tool diameter | 12 | 305 |
| Work range | ||
| Centre of spindle to top of table | 0-23 | 0 - 584 |
| Power feed | ||
| Range of 3 longitudinal feeds | 3/4-2 P/M | 19-51 P/M |
| Range of 3 cross feeds | 3/4 – 2 ½ P/M | 19-63 P/M |
| Range of 3 vertical feeds | 1/4 - ½ P/M | 6-12 P/M |
| Rapid longitudinal & cross | 42 P/M | 1066 P/M |
| Rapid vertical | 10 P/M | 254 P/M |
| Head motor | 5 HP/1440 RPM | Â |
| Feed motor | 3 HP/960 RPM | Â |
| Coolant Pump Motor | 1-10 HP | Â |
| Weight of the Machine (Packed) | 4000 Kg | Â |
