$8000
$9000
Piece/Pieces
0 Review(s)
| Specifications: | Â |
| Model Name/Number | SV |
| Brand | Super Tools |
| Machine Type | All Geared Vertical |
| Product Type | Vertical |
| Automation Grade | Automatic |
| Table Size | 1340 x 250 mm, 1600 x 300 mm, 2000 x 350 mm |
| Country Of Origin | India |
| Weight | 1600 Kg, 3150 Kg, 4200 Kg |
| Warranty | 1 Year |
| Minimum Order Quantity | 1 Unit |
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
| Specification | Unit | SV-2E | SV-3E | SV-4E |
| No./Width of ‘T’ Slots | MM | Mar-14 | Mar-16 | Mar-18 |
| Center Distance Between ‘T’ Slots | MM | 63 | 63 | 80 |
| Longitudinal Movement - Power | MM | 675 | 975 | 1275 |
| Longitudinal Movement - Manual | MM | 700 | 1000 | 1300 |
| Cross Traverse - Power | MM | 230 | 290 | 330 |
| Cross Traverse - Manual | MM | 250 | 300 | 350 |
| Vertical Movement - Power | MM | 375 | 400 | 400 |
| Vertical Movement - Manual | MM | 400 | 425 | 420 |
| Spindle Nose Taper | Â | ISO - 40 | ISO - 40 | ISO - 50 |
| Quill Movement (vertical) | MM | 70 | 100 | 100 |
| Swivel of Milling Head (vertical) | DEGREE | 45 | 45 | 45 |
| Speed | STEPS | 12 | 18 | 18 |
| Speed Range - Standard | R.P.M. | 35 - 1500 | 42 - 1500 | 42 - 1500 |
| Speed Range - Optional | R.P.M. | 45 - 2000 | - | - |
| Feed | STEPS | 9 | 18 | 18 |
| Feed Range Longitudinal & Cross | MM / MM | 20 - 800 | 16 - 800 | 16 - 800 |
| Feed Range Vertical | MM / MM | 10 - 400 | 4 - 200 | 4 - 200 |
| Longitudinal & Cross | MM / MIN | 1000 | 3200 | 3200 |
| Vertical | MM / MIN | 500 | 800 | 800 |
| Spindle Motor | KW / H.P. | 3.7 / 5 | 5.5 / 7.5 | 7.5 / 10 |
| Feed Motor | KW / H.P. | 1.5 / 2 | 1.5 / 2 | 2.25 / 3 |
| Overall Size (Vertical) | MM | 1650 x 1625 x 2030 | 1880 x 2060 x 2210 | 2340 x 2310 x 2340 |
| Overall Size (Universal) | MM | 1650 x 1625 x 1680 | 1880 x 2060 x 1830 | 2340 x 2310 x 1855 |
| Net Approx. | KG. | 1600 | 3150 | 4200 |
| Gross Approx. | KG. | 2000 | 4000 | 5000 |
| Table Overall Size | MM | 1340 x 250 | 1600 x 300 | 2000 x 350 |
| Table Clamping Area | MM | 975 x 250 | 1200 x 300 | 1600 x 350 |

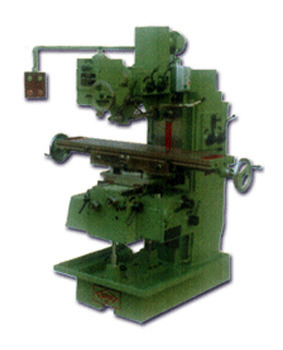

Our esteemed clients can avail from us an exclusive range of vertical all geared milling machine that is recognised in the market for their high functioning. The offered machines are manufactured by using high quality components by skilled professionals. The offered machines are used in numerous industrial works and known in the market for their various features. These offered machines are tested on various parameters as per the set industry quality norms and standards.
