| Specifications:Â | Â |
| Supply Voltage: | AC, 230V, 50Hz |
| Power Consumption: | 20 Watts |
| Stroke: | Continuous or Factory set at 900, 1600 or 2700(Field adjustable). |
| Auxiliary Switch (Optional): | 2.5A, 250V, 50Hz, NO or NC(Operated at only one fixed point). |
| Feedback Potentiometer: | 135 standard matched to stroke angle of either 900, 1600 or 2700(The maximum permitted power dissipation for feedback potentiometer is 1W for 900, 1.5W for 1600, and 2W for 2700 stroke angle). |
| Torque-Speed capabilities: | Total gear ratio is adjusted at factory to achieve suitable torque-speed combination. |
Â

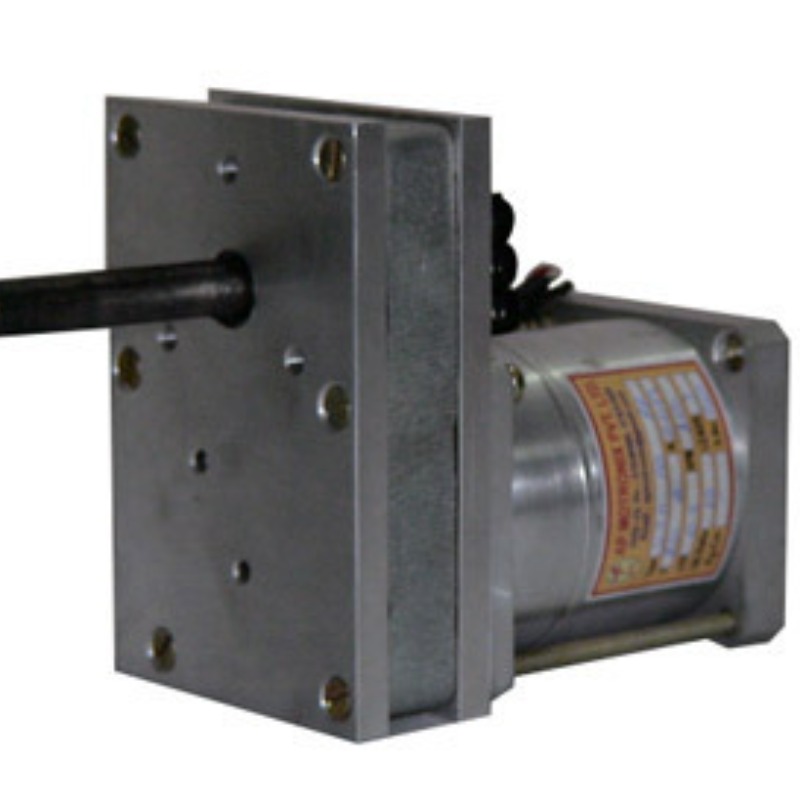

This AC motor unit compared to the AR4 type is compact in size. It consists of our Geared Servo Motor (GSM) along with suitable reduction gear box. The motor is 230 (or 115) V AC, 50Hz. The motor is compact, quickly reversible and is impedance protected to withstand continuous overload of locked rotor condition. The gears are hobbed in-house and assembled selectively for extended performance. For less than a revolution, the unit can be fitted with limit switches (field adjustable) for extreme ends cut off; for continuous rotation, the switch/cam/potentiometer are absent.
