$132
$135
Piece/Pieces
0 Review(s)
Specification:
| Specification: | Â | Â | Â | Â |
| Description | Rated Voltage | Rated Current | Breaking Capacity | Standards |
| OIL RMU | Â | Â | Â | Â |
| TRIDENT Range | Up to 15.5 kV | Up to 630 A | Up to 21.9 kA | IEC,IS |
| SF6 Gas Insulated Vacuum RMU | Â | Â | Â | Â |
| SABRE Range | Up to 24 kV | Up to 630 A | Up to 21 kA | IEC,IS |
| Multi Circuit Range | Up to 12 kV | Up to 630 A | Up to 21 kA | IEC,IS |
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Features:

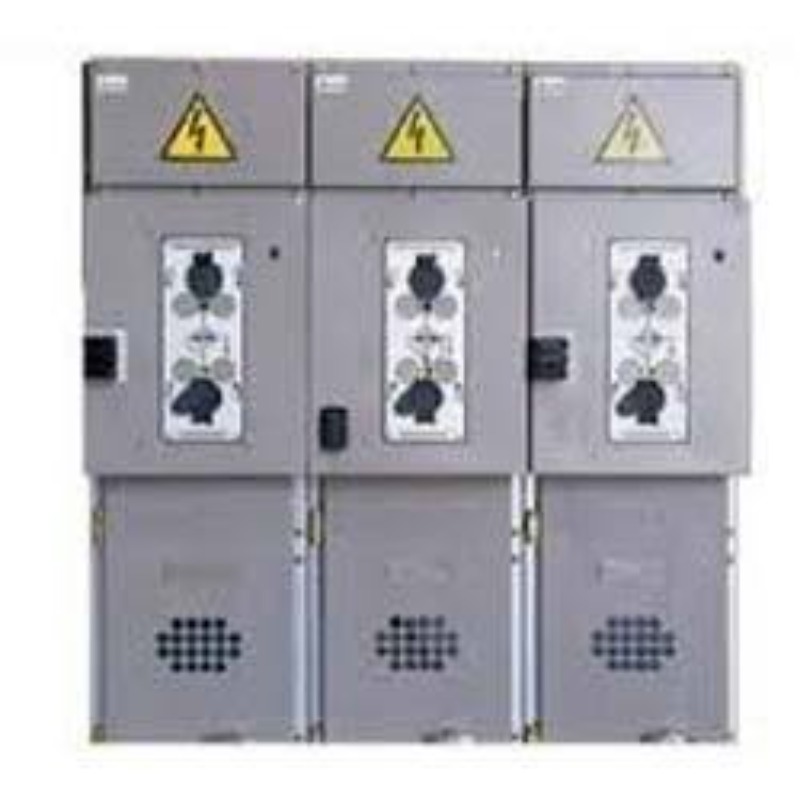

A standard piece of switchgear in distribution systems comprising of switches for switching power cable rings and of switches in series with fuses for the protection of distribution transformers. RMU: Ring Main Unit. RMU used for H.T.side. RMU is having 3no.s of switches (Circuit Breakers or Isolators or LBS), it is used for two inputs with mechanical or electrical interlock and one outgoing to the load. Either one input with two outgoings. RMU used for redundancy feeder's purpose. Ring main unit is used in a secondary distribution system. It is basically used for an uninterrupted power supply. Alongside, it also protects your secondary side transformer from the occasional transient currents. Depending on your applications and loading conditions you can use a switch fuse combination or a circuit breaker to protect the transformer. This transformer connected to the switch fuse/ circuit breaker is called your T off. In a common arrangement you have Load break switches on both the sides of your T off. Ring main Units come in standard ratings of 11/22/33 kV, 630/1250 A, 21 KA/3 secs.
